Printing the Spectrum

After the spectrum has been processed, it can be printed. The instructions below will provide a plot of the spectrum (and any picked peaks) that covers a full page of paper. (If you would like a printed spectrum that is accompanied by a peak pick table, see the picking peaks page).

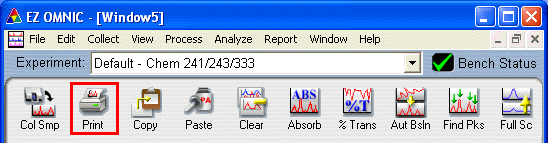

• Click the Print icon on the task bar to print the spectrum.

• Your spectrum must be properly labeled with your name, the compound, the sample method, and the date (the latter is printed automatically).
• Apart from labeling, do not cut or modify the spectrum in any manner!

Do not cut or modify the spectrum
