Chem 164 - Additional Graphics

Ethylene: C₂H₄

• the carbons are sp2 hybridized
• the arrangement at each C is planar
• the bond angles are 120 degrees

The following images show the molecule in various renderings. Carbon is grey, the hydrogens are blue.

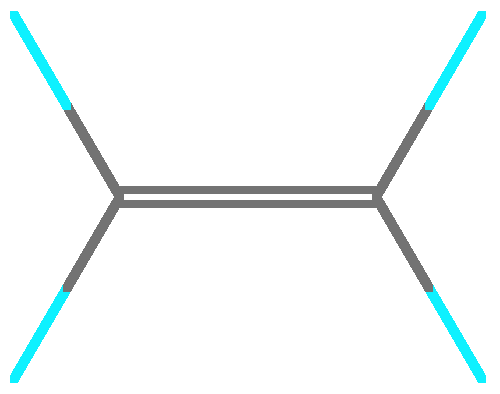

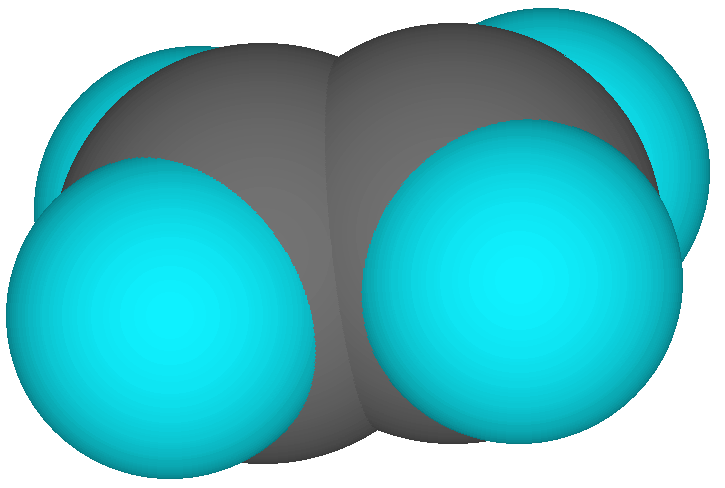

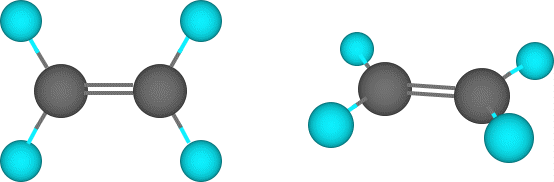

Ball and Stick Display	Wire Frame Display	Space Filling Display

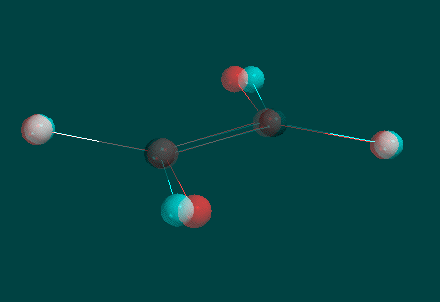

3D Ball & Stick Display (view with 3D glasses)

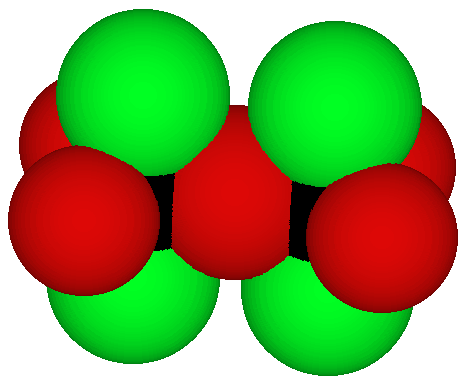

Orbitals on carbon:

• two green p atomic orbitals are shown, one on each carbon ready to form a pi molecular orbital
• a red sigma molecular orbital formed by overlap of two sp2 atomic orbitals connects the black carbons
• four additional red sp2 atomic orbitals are shown ready to form sigma molecular orbitals with hydrogen s atomic orbitals
